Service Gateway Pattern in WebSphere Enterprise Service Bus (WESB) 6.2

Rajiv Ramachandran, Practice Director, Enterprise Integration / Solution Architect

On of the new patterns that have been introduced in v6.2 of WESB is the Service Gateway Pattern. There are two implementations of this pattern – A Static Gateway and A Dynamic Gateway. In this blog entry I will focus on my experiences on using the Dynamic Service Gateway pattern.

One of the basic requirements that I expect in an ESB is the ability to introduce an ESB in the middle between a client and a service (without impacting either the client or the service) and be able to do provide value added services like logging, monitoring, auditing etc. This is exactly what we are able to accomplish with the Dynamic Service Gateway pattern. This gateway pattern is implemented as a mediation component. The interface for this mediation component has 2 operations, a request operation and a request response operation. Both these operations accept xsd:anyType (they are not bound to the type definitions exposed by any particular service). The reference partner for this mediation also maps to the same interface. The reason this pattern is dynamic, is because there is no coupling to services at compile time. You can dynamically set the service endpoint at runtime and invoke that service.

However what needs to be understood is that this pattern implementation works only for SOAP 1.2 based JAX WS Web Services. The reason why this restriction exists is because in JAX-RPC the invocation was RPC based -> a particular web service operation had to be specifically invoked. In JAX-WS the invocation is more messaging based. There is no specific operation invocation required. The following article series provide an in depth analysis of the differences between JAX-RPC and JAX-WS.
http://www.ibm.com/developerworks/library/ws-tip-jaxwsrpc4/index.html

The following diagrams show a sample implementation of this pattern for monitoring and auditing service invocations.


Assembly Diagram

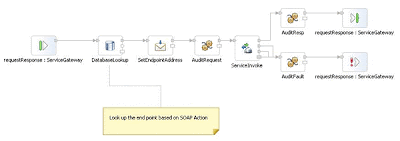

Mediation Flow









Look up Table





Audit Table
